Variable Diameter Pipeline Sealing Airbag – Adapting To Different Diameter Pipelines
The variable diameter pipeline sealing airbag is a device used for sealing underground pipelines. It is primarily composed of soft metals and multi-layer polymeric materials to form an airtight sealing bag. Both sides of the bag are equipped with waterproof adhesive strips that can withstand high temperatures. When the inflation reaches a certain pressure, the strip will tightly adhere to the pipeline and cable, achieving complete waterproofing. In addition, the inflation port contains self-filling polymeric materials to prevent gas leakage.

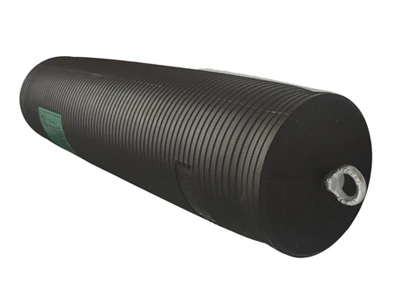

VDP-01: Variable diameter pipeline sealing airbag
VDP-02: Variable diameter pipeline sealing airbag
Specifications
The variable diameter pipeline sealing airbag comes in various specifications and can be customized according to the diameter and material of the pipeline.
| Item | Applicable Pipe Diameter (mm) | Inflation pressure (MPa) | Using Water Depth (≤m) | Initial Diameter (mm) | Length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| U150-300 | 150-300 | 0.2 | 10 | 135 | 500 | 2.5 |
| U200-400 | 200-400 | 0.2 | 10 | 180 | 600 | 4 |
| U200-500 | 200-500 | 0.2 | 10 | 180 | 750 | 5 |
| U300-600 | 300-600 | 0.15 | 8 | 280 | 750 | 10 |
| U400-800 | 400-800 | 0.15 | 8 | 380 | 900 | 18 |
| U500-1000 | 500-1000 | 0.15 | 8 | 460 | 1050 | 25 |
Features
- Variable diameter. This airbag can adapt to pipelines of different diameters, allowing it to work effectively in various applications.
- Sealing performance. It is primarily used to prevent the infiltration of moisture, sewage, and other substances, and ensure the safety and cleanliness of the internal environment of the pipeline.
- Durable materials. Made from high-strength, corrosion-resistant materials, it can withstand harsh working environments, and ensure long-term use.
- Easy installation. The installation process is quick and convenient, allowing for rapid sealing work and reducing downtime.
- Wide applications. It is suitable for municipal pipelines, power, communications, and many other fields, capable of being used in pipelines of different materials (such as PVC, steel, etc.).
- Self-filling function. Built-in polymeric materials can self-fill under certain pressure to prevent gas leakage.
- Durability. The product can withstand harsh environments, with a service life of up to 20 years.
Applications
The variable diameter pipeline sealing airbag is highly versatile and suitable for a wide range of applications. It can be used for pipeline water-tightness testing, municipal pipeline maintenance, pipeline plugging, desilting operations, flow isolation, and leakage point sealing. It is also widely applied in drainage pipeline inspection, wastewater treatment operations, emergency repair of fire protection systems, and various plugging and sealing projects. With excellent pressure-bearing performance, the airbag ensures reliable pipeline blockage once deployed, effectively safeguarding the safety of downstream personnel during maintenance and operational activities.

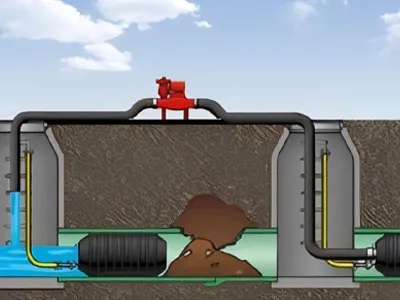

VDP-03: Variable diameter pipeline sealing airbag for water-tightness testing

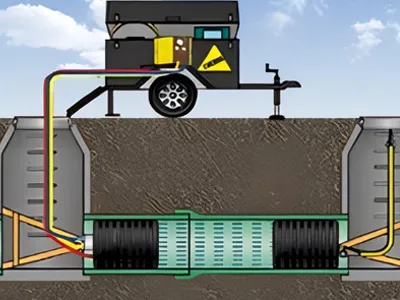

VDP-04: Variable diameter pipeline sealing airbag for pipeline flow isolation

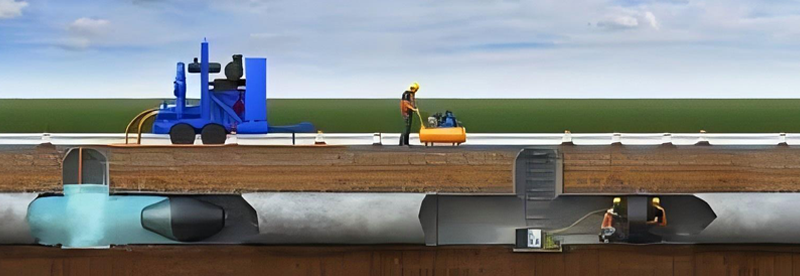

VDP-05: Variable diameter pipeline sealing airbag for drainage pipeline inspection and repair
