Rubber Inflatable Pipe Plug

Home > Products > Rubber Inflatable Series Products > Rubber Inflatable Pipe Plug

The Rubber Inflatable Pipe Plug with Good Burst Strength, Elasticity & Flexibility

Rubber inflatable pipe plugs are a type of internal intercepting flow device made from high-quality rubber, featuring excellent burst strength, elasticity, and flexibility. They are primarily used for intercepting flow in drainage pipelines and are widely applied in the fields of water supply and drainage, civil engineering, and fire rescue. This inflatable bag expands through air injection, causing its wall to closely adhere to the inner wall of the pipeline, thereby achieving the purpose of sealing the pipeline.

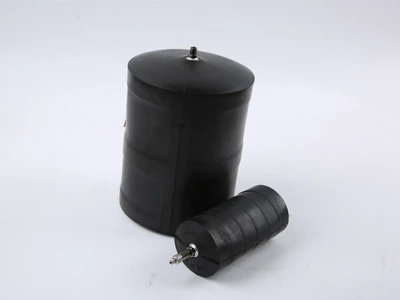

2 rubber inflatable pipe plugs of different diameters placed at different directions
RIPP-01: Rubber inflatable pipe plug

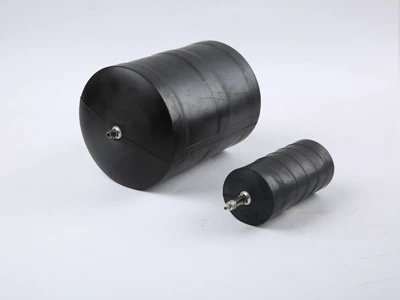

2 rubber inflatable pipe plugs of different diameters placed in the same direction
RIPP-02: Rubber inflatable pipe plug

Specifications (Customizable)

  • Material: Natural rubber, synthetic rubber materials (such as nitrile rubber, neoprene, etc.).
  • Pressure rating: 0.1–1.0 MPa.
  • Diameter range: The rubber inflatable pipe plug has a wide range of diameters, from a few centimeters to several tens of centimeters, to accommodate different sizes of pipelines.
  • Length: The length of the rubber inflatable pipe plug varies according to the pipeline length and sealing requirements.
  • Inflatable equipment: Air pump or blower

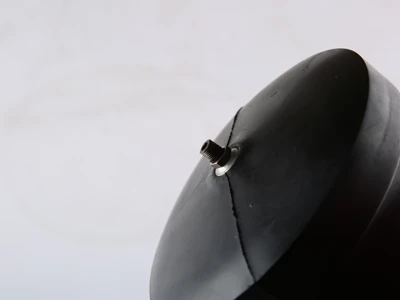

The large diameter rubber inflatable pipe plug equipped with an air pump inflation port
RIPP-03: Rubber inflatable pipe plug air pump inflation port

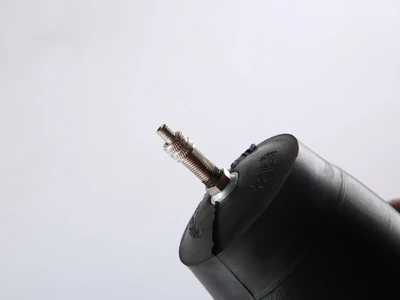

The small diameter rubber inflatable pipe plug equipped with a blower inflation port
RIPP-04: Rubber inflatable pipe plug blower inflation port
Table 1: Rubber Inflatable Pipe Plug Specification
Item Classification DN (mm/inch) Length Weight (kg/set)
1 Natural rubber water plug/PVC 50/2" 110 mm 0.10
2 75/3" 130 mm 0.16
3 100/4" 150 mm 0.30
4 150/6" 190 mm 0.60
5 200/8" 230 mm 0.85
6 250/10" 280 mm 1.30
7 300/12" 330 mm 2.10
8 400/16" 440 mm 5.10
9 500/20" 610 mm 8.00
10 600/24" 710 mm 9.50
11 2 layers rubber and 1 layer cloth 300 1 m 4.50
12 400 1 m 6.50
13 500 1 m 8.00
14 600 1 m 10.00
15 700 1.05 m 12.50
16 800 1.2 m 16.50
17 900 1.35 m 20.50
18 1000 1.5 m 25.50
19 1100 1.65 m 30.50
20 1150 1.725 m 33.30
21 1200 1.8 m 36.50
22 1500 2.25 m 50.00
23 1600 2.4 m 56.50
24 1800 2.7 m 71.50

Features

  • Good sealing performance. Rubber material has excellent elasticity and air-tightness, allowing for complete sealing of pipelines.
  • Highly adaptability. It is suitable for pipelines made of different materials and shapes, such as circular, oval, square, etc.
  • Easy installation. The rubber inflatable pipe plug can be quickly installed in place through air inflation, making the operation simple.
  • Cost-effective. Compared to other plugging methods, rubber inflatable pipe plugs are more affordable and can be reused.
  • Corrosion resistance. Certain rubber materials have good corrosion resistance, making them suitable for sealing pipelines in the chemical industry.
  • Environmentally friendly & Safe. Using rubber inflatable pipe plugs does not produce harmful chemicals, making them environmentally friendly.

Applications

  • Pipeline maintenance. During pipeline repairs or replacements, the rubber inflatable pipe plug can be used for temporary sealing to prevent sewage or pollutants from entering the pipeline.
  • Pipeline inspection. During pipeline internal inspection, rubber inflatable pipe plugs can be used to isolate the inspection area, ensuring a clean inspection environment.
  • Drainage system maintenance. In urban drainage system maintenance, rubber inflatable pipe plugs can be used to block drainage pipelines for water-tight testing or cleaning operations.
  • Industrial pipeline cleaning. In the process of industrial pipeline cleaning, rubber inflatable pipe plugs can be used to isolate the cleaning area, preventing leakage of cleaning fluids.
  • Construction. In construction, rubber inflatable pipe plugs can be used for temporary sealing of pipelines to prevent contamination and damage during the construction process.

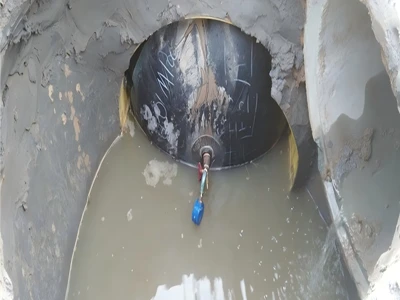

Rubber inflatable pipe plug with a pressure gauge prevents sewage from entering the pipeline.
RIPP-05: Pipeline maintenance

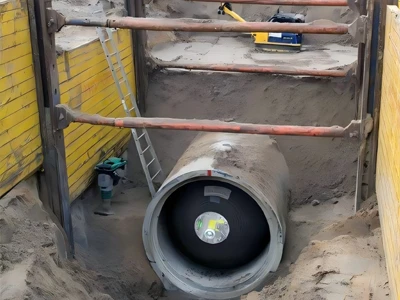

A large diameter rubber inflatable pipe plug is placed at the construction pipeline opening.
RIPP-06: Construction

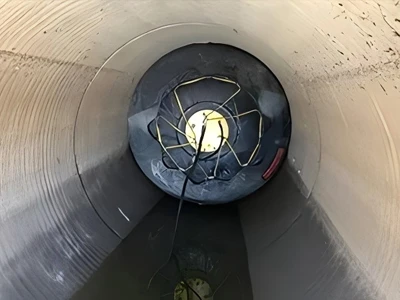

Rubber inflatable pipe plugs are used to block drainage pipelines for cleaning work.
RIPP-07: Industrial pipeline cleaning

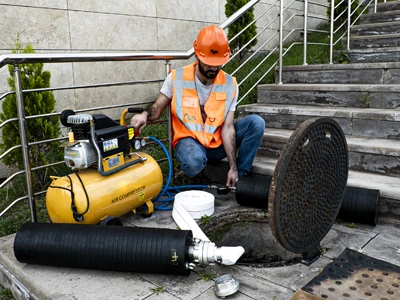

A person is inflating a rubber inflatable pipe plug at the manhole cover.
RIPP-08: Pipeline Inspection
