Butyl Windscreen Sealant – High Sticky Adhesive Waterproof Insulation Tape

Butyl windscreen sealant, also known as butyl rubber sealing strip or butyl sealing tape, is a black synthetic butyl rubber sealant. It is commonly used in the installation of automatic windshields, particularly in the sealant tape between the glass and metal areas. This sealant tape has excellent adhesion and weather resistance, and can effectively prevent moisture and air infiltration, thereby maintaining a permanent seal between the glass and metal. In addition, it can withstand temperature changes and UV exposure, ensuring the waterproof performance of the welded joints and extending the vehicle's lifespan.

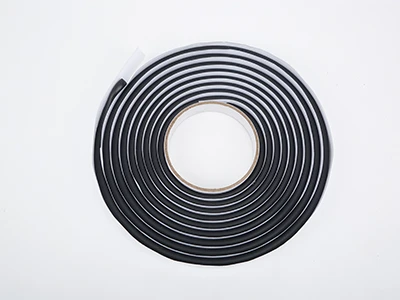

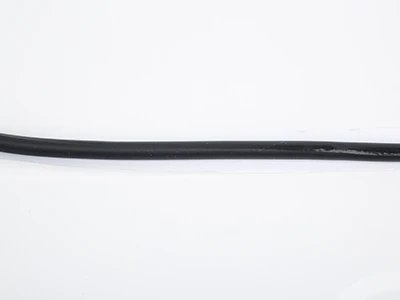

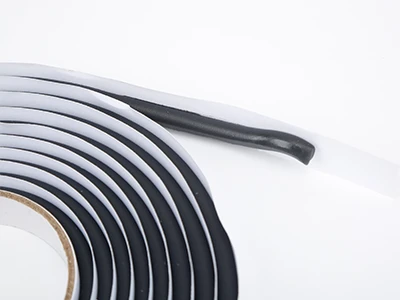

BWS-01: Butyl windscreen sealant

BWS-02: Butyl windscreen sealant

BWS-03: Butyl windscreen sealant

BWS-04: Butyl windscreen sealant

Specifications

• Appearance: Black
• Specifications: Roll packaging
• Technical Performance:
  • Peel strength ≥ 0.2 kN•m (for stainless steel)
  • High-temperature resistance test 80 °C × 4 hours without flow
  • Low-temperature resistance test -40 °C × 4 hours without cracking

Advantages

• Good adhesion. It can firmly adhere to glass and metal surfaces without easily coming off.
• High and low temperature resistance. It maintains its performance in both extremely cold and hot environments, resistant to deformation or aging.
• Waterproof sealing. It provides long-lasting waterproof sealing effect and prevents moisture penetration.
• Easy operation. Typically, simply peel the tape off the release paper and apply it to the contact surfaces between the windshield and the vehicle body according to the proper method.

Applications

• Good adhesion strength to materials such as glass, metal, and plastic;
• Installation, sealing, reinforcement, vibration damping, sound absorption, and sound insulation in speaker systems in the electronics industry;
• Sealing, shock absorption, sound absorption, and sound insulation for refrigerators and air conditioners;
• Sealing between kitchen cabinets, bathtubs, sinks, and the edges of walls, as well as sealing between walls;
• Waterproof sealing treatment in automotive and marine assembly;
• Waterproof sealing treatment at joints in steel structure buildings;
• Electrical insulation sealing and flame retardant for metal components.

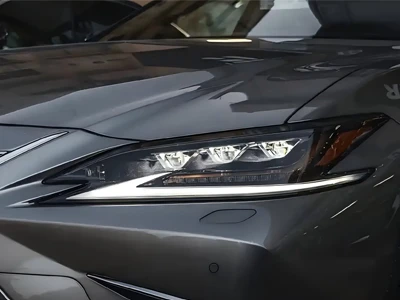

BWS-05: headlight seal

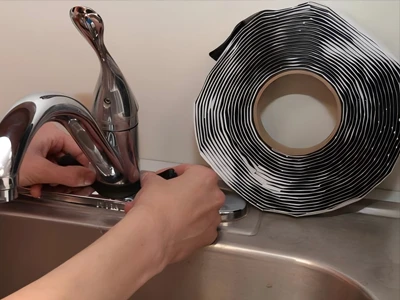

BWS-06: Pipe connector seal

Packaging

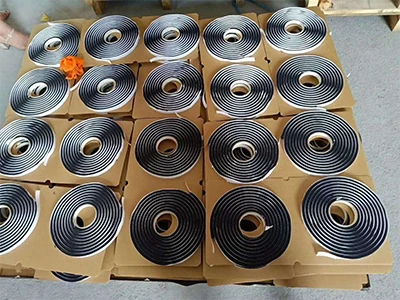

BWS-07: Cardboard packaging

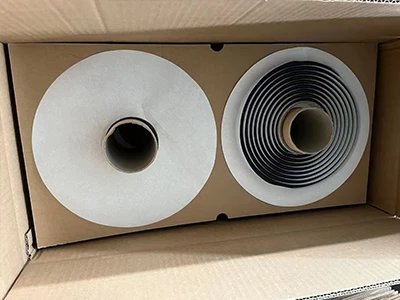

BWS-08: Foam packaging

Precautions

• Before use, please remove moisture, grease, dust, and other dirt from the surface of the adhesive material;
• The tape should be stored in a cool, dry place, avoiding high temperatures, direct sunlight, or rain, and should not be stored on its side;
• The shelf life of the tape in its original packaging is generally 3 years.
• In cold weather conditions, it is best to heat the tape before attempting installation, as this will soften the tape, making it easier to handle.
