High Pressure Pipeline Blocking Airbag Can Withstand High Pressure Environments
High pressure pipeline blocking airbag adopts a bionic design, inspired by silkworm cocoons, using rubber as the sealing material, combined with interwoven high tensile strength fibers. This unique structure not only enhances the durability of the product but also improves its sealing performance. According to different user requirements, the product can be customized with various pressure parameters, ranging from 0.15 MPa to 0.6 MPa, ensuring reliable blocking effects in various applications. Its high safety makes high pressure pipeline blocking airbag an ideal choice for pipeline maintenance and emergency response, effectively preventing leaks and environmental pollution, and ensuring the safety of operators.

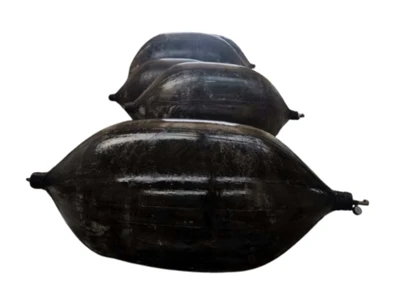

HPAB-01: High pressure pipeline blocking airbag

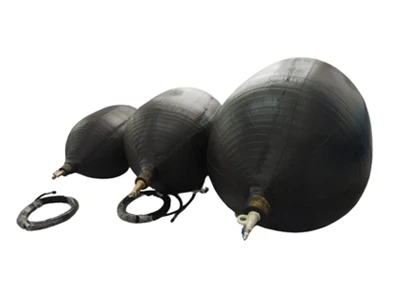

HPAB-02: High pressure pipeline blocking airbag
Specifications
High pressure pipeline blocking airbag is safer and more convenient compared to other blocking methods. Depending on the specifications, it can block water levels from 1 to 30 meters, and is suitable for pipelines with a diameter of DN 300–6000 mm. In addition, airbags can also be customized for other deep water levels and large specifications.
| DN (mm) | Length (mm) | Weight (kg) | Available Pressure ≤ MPa | Blocking Water Depth ≤ m |
|---|---|---|---|---|
| 300 | 0.8 | 6 | 0.2 | 10 |
| 400 | 1.0 | 10 | 0.2 | 10 |
| 500 | 1.3 | 12 | 0.2 | 10 |
| 600 | 1.4 | 18 | 0.2 | 10 |
| 800 | 1.7 | 28 | 0.2 | 10 |
| 1000 | 2.2 | 45 | 0.2 | 10 |
| 1200 | 2.4 | 55 | 0.2 | 10 |
| 1350 | 2.6 | 75 | 0.2 | 10 |
| 1400 | 3.0 | 85 | 0.2 | 10 |
| 1500 | 3.2 | 100 | 0.2 | 10 |
| 1650 | 3.6 | 135 | 0.2 | 10 |
| 1800 | 3.8 | 150 | 0.2 | 10 |
| 2000 | 4.0 | 200 | 0.2 | 10 |
| 2200 | 4.4 | 245 | 0.2 | 10 |
| 2500 | 4.7 | 300 | 0.2 | 10 |
| 2800 | 5.0 | 360 | 0.2 | 10 |
| 3000 | 5.2 | 400 | 0.2 | 10 |
| 4000 | 6.0 | 600 | 0.2 | 10 |
Features
- High pressure resistance
- Aging resistance
- Impact resistance
- High safety factor
- Fast blocking speed, reusable multiple times
- Easy and quick to install and remove
Applications
It is widely applicable for water closure tests of various pipelines, maintenance and blocking of municipal pipelines, as well as operations such as dredging, cleaning, water blocking, and leak sealing.
Accessories
High pressure pipeline blocking airbag includes a cast steel inflatable pull ring, shock-resistant pressure gauge, sealing tape, 10-meter high pressure pipe, and connectors.

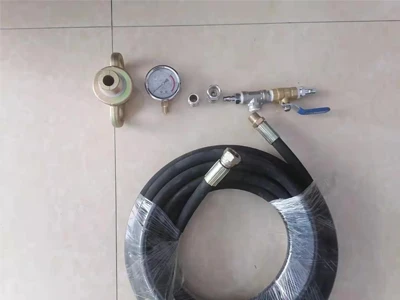

HPAB-03: Accessories

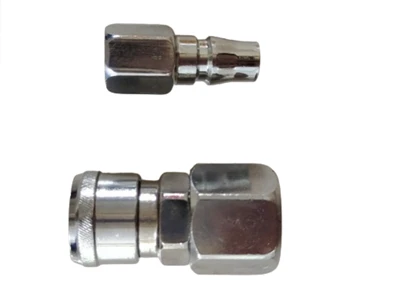

HPAB-04: Connector

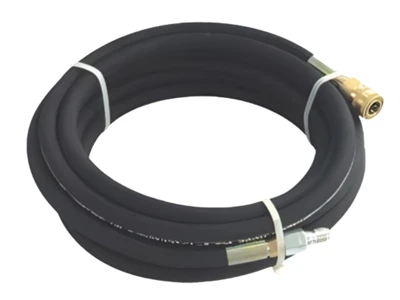

HPAB-05: High pressure pipe
