Aluminum Foil Butyl Tape – A High-Adhesive Waterproof Sealing Tape

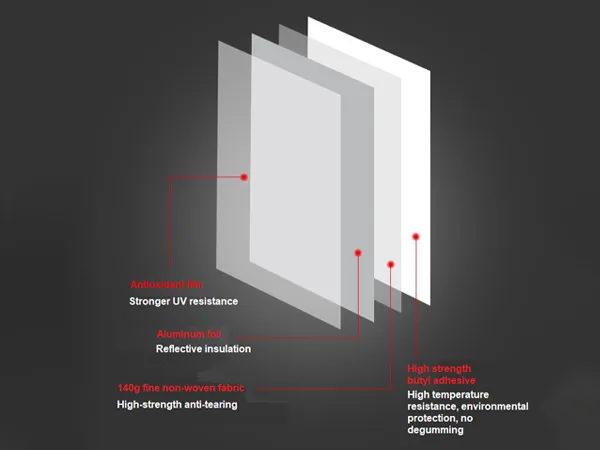

Aluminum foil butyl tape is a roll of waterproof sealing tape made of butyl rubber and polyisobutylene adhesive as the base material, combined with anti-oxidizing aluminum foil and release paper. Compared with other butyl tapes, the aluminum foil layer offers additional advantages such as reflecting heat and blocking ultraviolet rays. The backing of the aluminum foil also enhances the strength and durability of the tape, making it suitable for applications requiring heat resistance, weathering resistance and moisture resistance.

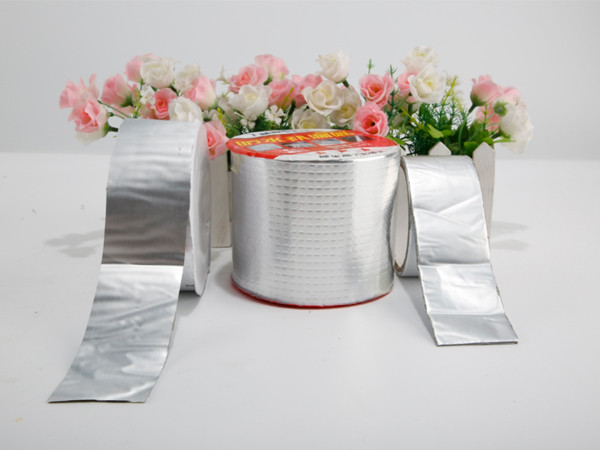

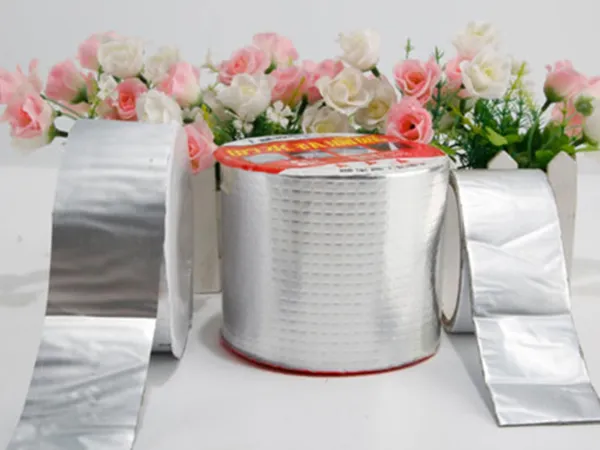

3 colors and styles of aluminum foil butyl tape

AFBT-1: Aluminum foil butyl tape

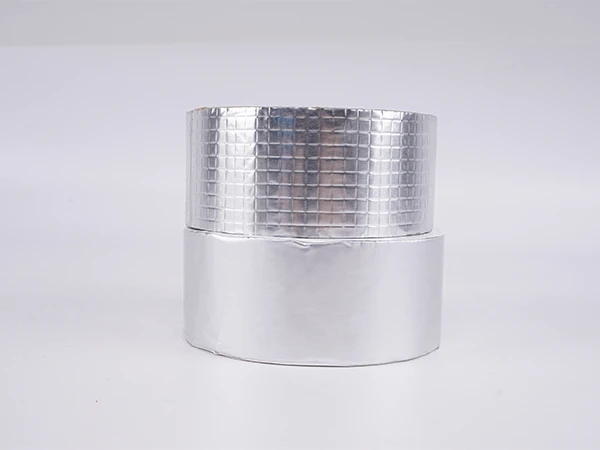

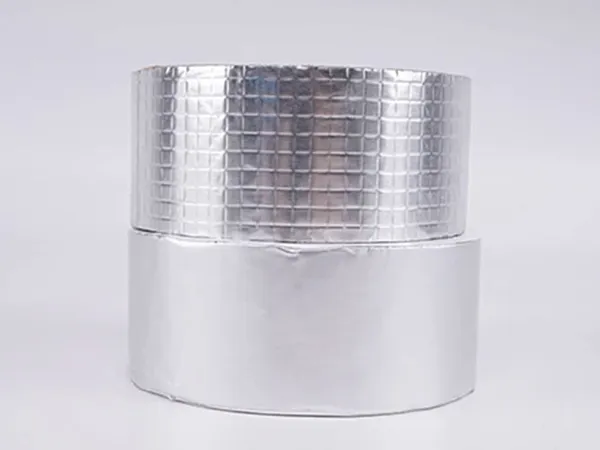

A roll of smooth aluminum foil butyl tape and a roll of checkered aluminum foil butyl tape

AFBT-2: Aluminum foil butyl tape

Specifications:

Product name: aluminum foil butyl tape
Material: aluminum foil, butyl rubber
Butyl rubber color:

White

Black

Gray
Aluminum foil color:

Silver

Blue

Red

Golden

Customizable
Thickness: 1.0 mm, 1.2 mm, 1.5 mm, 2 mm, 3 mm

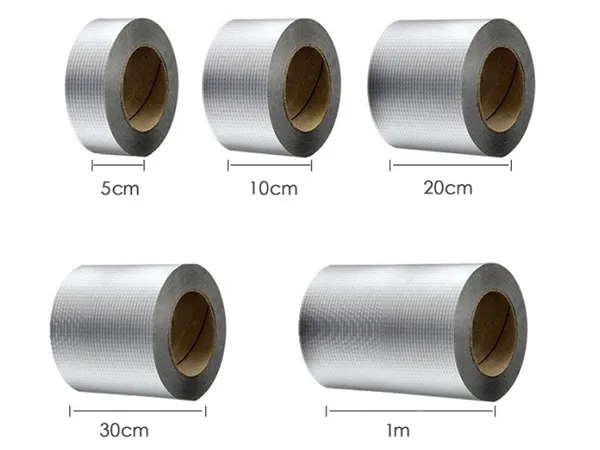

Width: 50–500 mm
Length: 5 m, 10 m, customizable
Service Life: 5–10 years
Type: smooth aluminum foil butyl tape, grid aluminum foil butyl tape, diamond aluminum foil butyl tape

AFBT-3: Smooth aluminum foil butyl tape

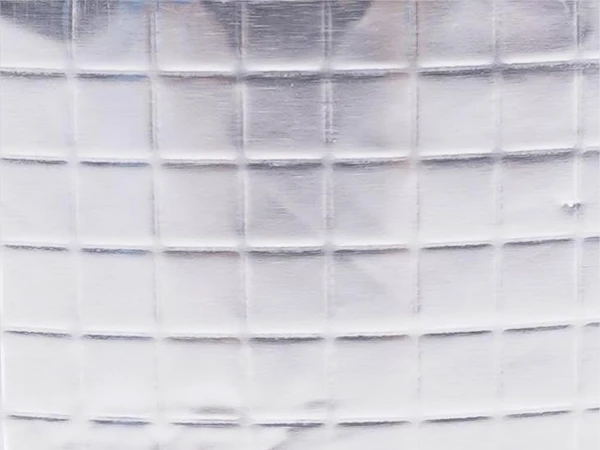

AFBT-4: Square aluminum foil butyl tape

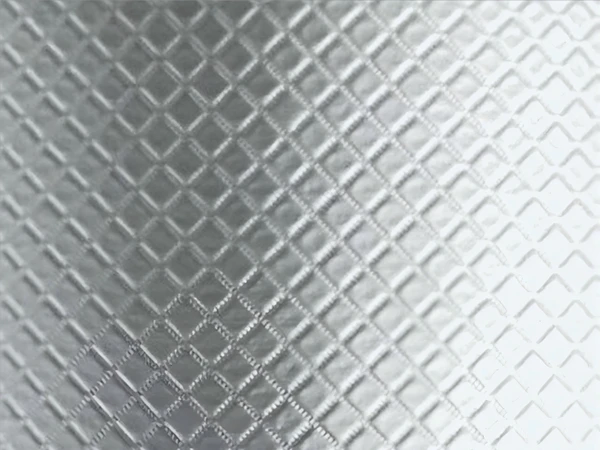

AFBT-5: Diamond aluminum foil butyl tape

Table 1: Aluminum Foil Butyl Tape Technical Data

-	Item			Standard	Results	Valuation
1	Persistent adhesion(Min)		Upper surface	≥20	48	Pass
1	Persistent adhesion(Min)		Lower surface	≥20	37	Pass
2	Heat-resistant properties (80 °C, 2 h)			No flow, no crack, no deformation	No flow, no crack, no deformation	Pass
3	Low temperature flexibility (-40 °C)			No crack	No crack	Pass
4	Adhesive performance on sheer condition (N/mm)		Waterproofing roll	≥ 2.0	5.3	Pass
5	Peel strength (N/mm)		Waterproofing roll	≥ 0.4	1.4	Pass
5	Peel strength (N/mm)		Cement mortar board	≥ 0.6	1.4	Pass
6	Peel strength retention rate(%)	Heat treatment (80 °C, 168 h)	Waterproofing roll	≥ 80	99	Pass
		Saturated calcium hydroxide solution, 168 h	Waterproofing roll	≥ 80	96	Pass
		Saturated calcium hydroxide solution, 168 h	Cement mortar board	≥ 80	128	Pass
		Soaking treatment, 168 h	Waterproofing roll	≥ 80	85	Pass
		Soaking treatment, 168 h	Cement mortar board	≥ 80	124	Pass

Features:

Easy to operate
Environmentally friendly, non-toxic and odorless
Chemical resistance, weather resistance and corrosion resistance
Good tracking ability of material shape change
High bonding strength and tensile strength, good elasticity, good elongation performance
Excellent compatibility with most traditional materials
Strong adaptability to changes in substrate conditions and cracking
High adhesion, water resistance, sealing, high and low temperature resistance, dimensional stability

Applications:

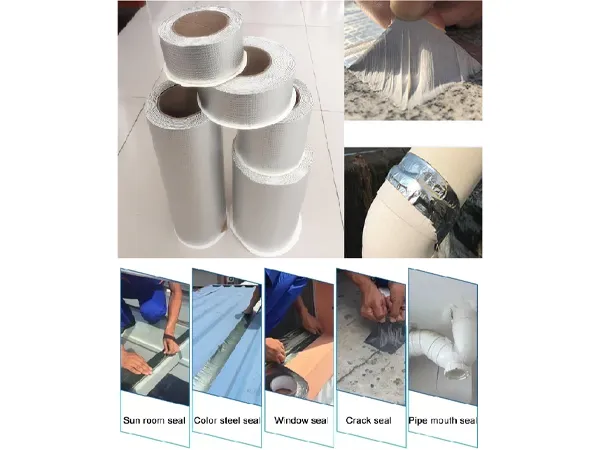

Aluminum foil butyl tape is mainly used for repairing steel structure factory roofs, metal roofs, and other construction projects; sealing and waterproofing of pipes and fans against buildings; sealing and waterproofing of glass curtain walls, doors and windows; bonding and sealing in automotive assembly, etc.

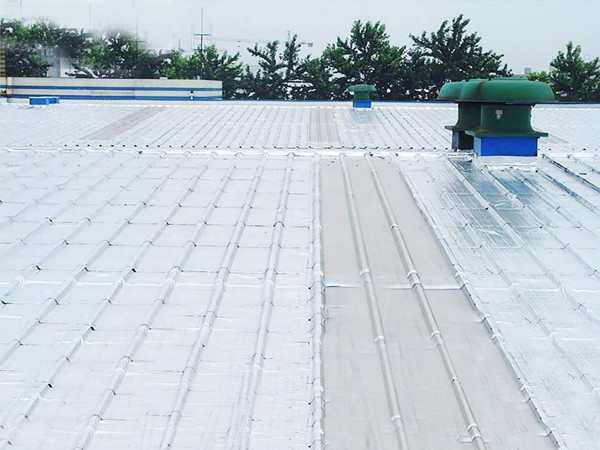

Use aluminum foil butyl tape to seal the roof for waterproofing.

AFBT-6: Roof waterproofing

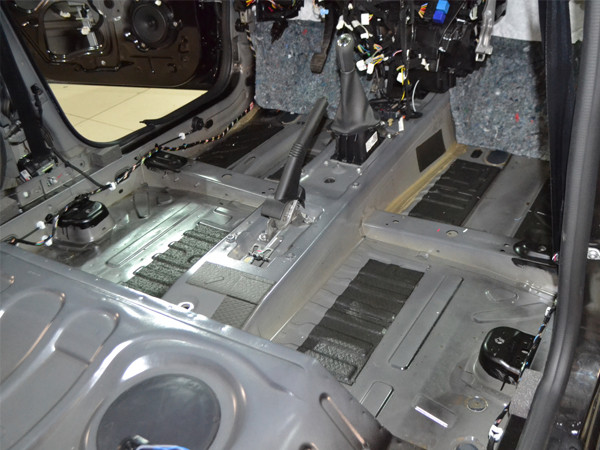

Use aluminum foil butyl tape to seal the accessories inside the car.

AFBT-7: Bonding and sealing in automotive assembly

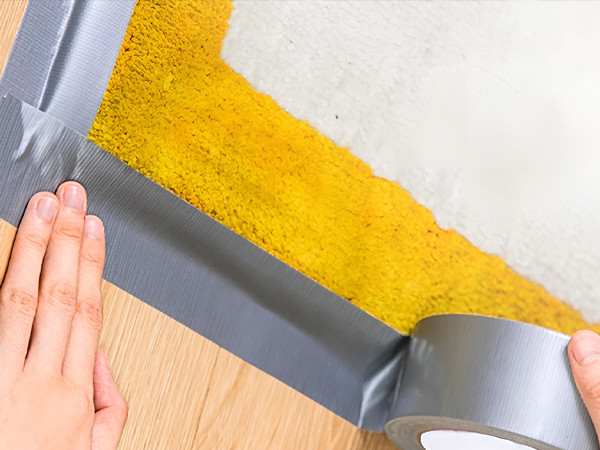

Aluminum foil butyl tape for sealing the gap between the floor and the floor mat.

AFBT-8: Gap between floor and floor mat

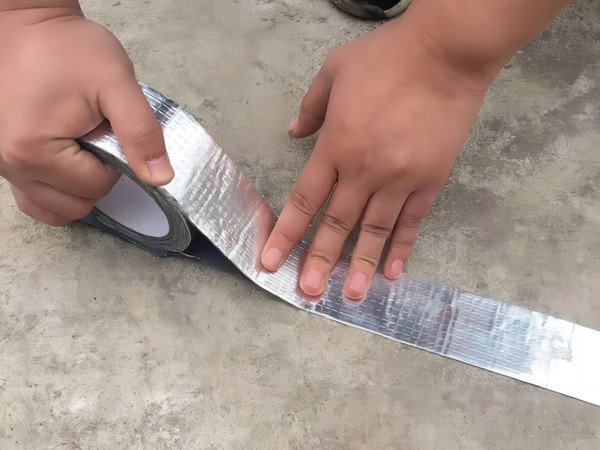

Aluminum foil butyl tape is used to seal a crack in the ground.

AFBT-9: Ground crack
