Home > Products > Double Sided Butyl Tape

Double Sided Butyl Tape - Shock Absorption, Protection

Double sided butyl tape is mainly made of butyl rubber and poly isobutene blending. In accordance with special production formula, using the latest patented technology, through special process that produce environmental friendly type double sided butyl adhesive tape. It has strong adhesion to various surfaces. What's more, it also has excellent weather resistance, aging resistance and good water resistance. To the pasted surface, it features seal, shock absorption, protection, etc. In addition, double sided sealing butyl tape does not contain any solvents, it is not shrink, not emit toxic gases. And convenient construction makes it become a rare waterproof sealing material in the construction. Widely used in foundation engineering roof waterproof, underground facilities waterproof, tunnel, water supply and drainage works and so on.

A roll of double sided butyl sealing tape is put on the blue background.
DSBT-1: Double sided butyl sealing tape.
From overlook view to see one roll of double sided butyl tape lying on the blue background.
DSBT-2: Double sided butyl tape in overlook view.

Specifications:

  • Product name: double sided butyl tape.
  • Material: butyl rubber and poly isobutene blending.
  • Color: black.
  • Width: 1 cm - 10 cm.
  • Thickness: 1 mm - 1 cm.
  • Service life: more than 20 years.
The width of wide double sided butyl tape is measured by the calipers, and the number is 95.00 mm.
DSBT-3: Measuring the width of double sided butyl sealing tape in wide size.
Use the calipers to measure the thickness of wide double sided butyl sealing tape, and the number is 1.18 mm.
DSBT-4: Measurements of wide double sided butyl tape thickness.
Use the calipers to measure the width of fine double sided butyl tape, and the number is 22.00 mm.
DSBT-5: Measuring the width of fine double sided butyl sealing tape.
The thickness of fine double sided butyl tape is measured by the calipers, and the number is 1.91 mm.
DSBT-6: Measurements of double sided butyl tape thickness in fine size.
There are three rolls of double sided butyl tape are lying on the blue background, The fine size is on the left, the wide size is on the right.
DSBT-7: Double sided butyl tape in three different sizes.

Features:

  • UV resistance property.
  • Convenient construction.
  • Long service life can up to 20 years.
  • Sound insulation, shock absorption
  • Through rigorous testing of the EU ROHS.
  • Without any solvents, safety and environmental friendly.
  • Chemical properties: no solvent, no shrinkage, no poison.
  • Waterproof, good anti oil effect, acid and alkali resistance.
  • Easy to use, accurate dosage, reduce waste, cost-effective.
  • Can be customized according to the customer's requirements.
  • Strong adhesion: both sides of the adhesive tape have strong adhesion force.
  • Excellent adhesion property to all the base materials and auxiliary materials in the OEM market.
  • It can maintain permanent flexibility, adhesion, and can withstand a certain degree of displacement, deformation has a good follow nature.
  • High temperature resistance: the highest resistance to temperature can be 90°C, so it is also called high temperature resistant sealing adhesive tape.
Double sided butyl tape with unfolded part is put flatwise on the blue background.
DSBT-8: Double sided butyl sealing tape with some unfolded part.
Double sided butyl tape with some unfolded part is side placement on the blue background.
DSBT-9: Double sided butyl tape in side placement.

Applications:
Double sided butyl tape has a wide range of applications, and the following is part of its applications.

  • Adhesion of greenhouses.
  • Sealing treatment of through-wall cave.
  • Bonding seal for use in kitchen flue seam.
  • Cement, wood, PC, PE, PVC, EPDM, CPE materials' adhesion.
  • Waterproof sealing in wind power industry and shipbuilding industry.
  • Use for cable connectors, it is also called the cable insulation sealing tape.
  • Sealing and anti shock in automobile air conditioner, refrigerator and freezer.
  • Bonding and sealing treatment of air duct flange port in central air conditioner.
  • Air tight and waterproof treatment for ventilating duct, door and window of civil residence.
  • Seal at the joint of the treatment tank, the sedimentation tank, water supply and drainage pipeline.
  • Sealing and waterproofing treatment of subway tunnel construction joint in municipal engineering.
  • Double sided butyl adhesive tape used on glass and window edge, protect the glass from damage by external forces.
  • Waterproof treatment of roof waterproof, underground waterproof and construction structure joint of new project.
  • Metal plate, cement roof leakage treatment, light steel structure roof plate, the mutual overlap between the lighting board.
  • Waterproof and sealing treatment of interface, head part, special shaped parts and special material bonded in waterproof engineering.
  • For automobile manufacturing industry: Damping adhesive sealing of car door waterproof membrane, body and frame, floor and so on.

Attention:

  • Before adhesion, oil, dirt and other impurities on the colored steel plate surface must be completely cleaned out, and maintain the adhesion surface clean.
  • Double sided butyl sealing waterproof tape should not be exposed to use.

Packaging:
Double sided butyl sealing tape can be packaged with carton box.

Four rolls of double sided butyl tapes are put in a carton box for package.
DSBT-10: The package of double sided butyl sealing tape is carton box.
Many carton boxes with double sided butyl tapes inside are put on the truck for transport.
DSBT-11: Packaged double sided butyl tapes are ready for transport.

Construction technology of double sided butyl adhesive tape:

  1. According to the gap, joint width of the joint position or metal plate, select different specifications based on engineering design requirements.
  2. Use a small roller to clean the metal plate joint position.
    Blue metal plate joint position is cleaned by a small roller.
    Clean the metal plate joint position.
  3. Starting from one side of the metal plate, take the double-sided adhesive tape slowly open along the seam into a straight line. Adhesion it onto the lap joint of the metal plate, and then gently press the tape, so that it can firmly bonded to the metal plate.
    Open the double-sided adhesive tape into a straight line along the seam and stick it on the blue metal plate.
    Stick double sided butyl tape on the metal plate.
    Use a small roller to gently press the double sided butyl sealing, so that it can firmly bonded to the blue metal plate.
    Gently press the double sided butyl sealing.
  4. Tear up the isolation paper of double sided butyl sealing tape, press the upper layer of the metal plate into the joint, make seams firm, bond and close tight.
    Tear up the isolation paper of double sided butyl sealing tape.
    Tear up the isolation paper.
    Bonded double sided butyl tape on the blue metal plate.
    One side is bonded on the metal plate.

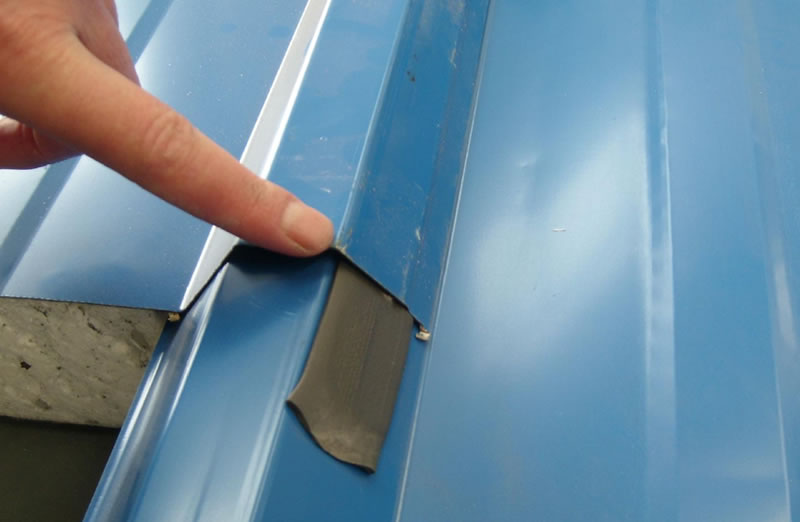

    Press the upper layer of the blue metal plate into the lower metal joint, make seams firm, bond and close tight.
    Stick the upper layer of metal plate into the lower layer.
  5. Tighten the screws and ensure both sides of the self adhesive tape bond tightly.
